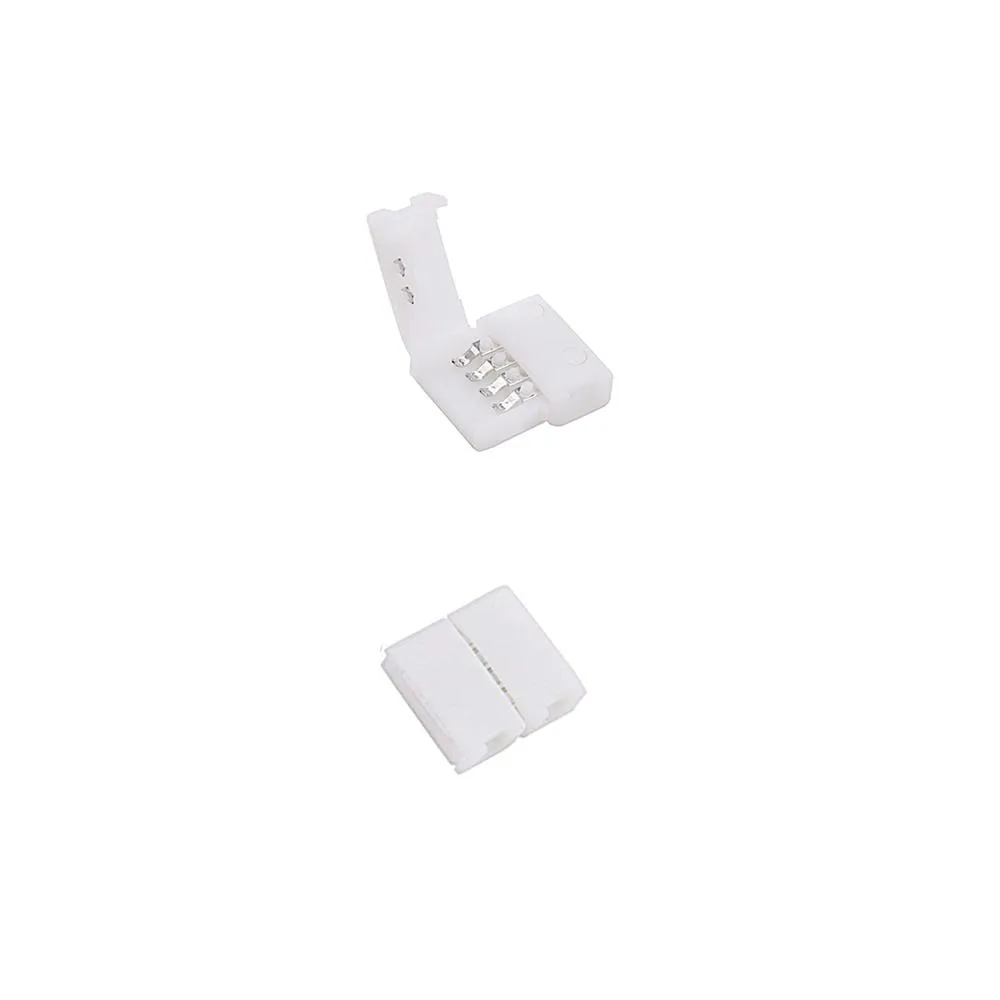

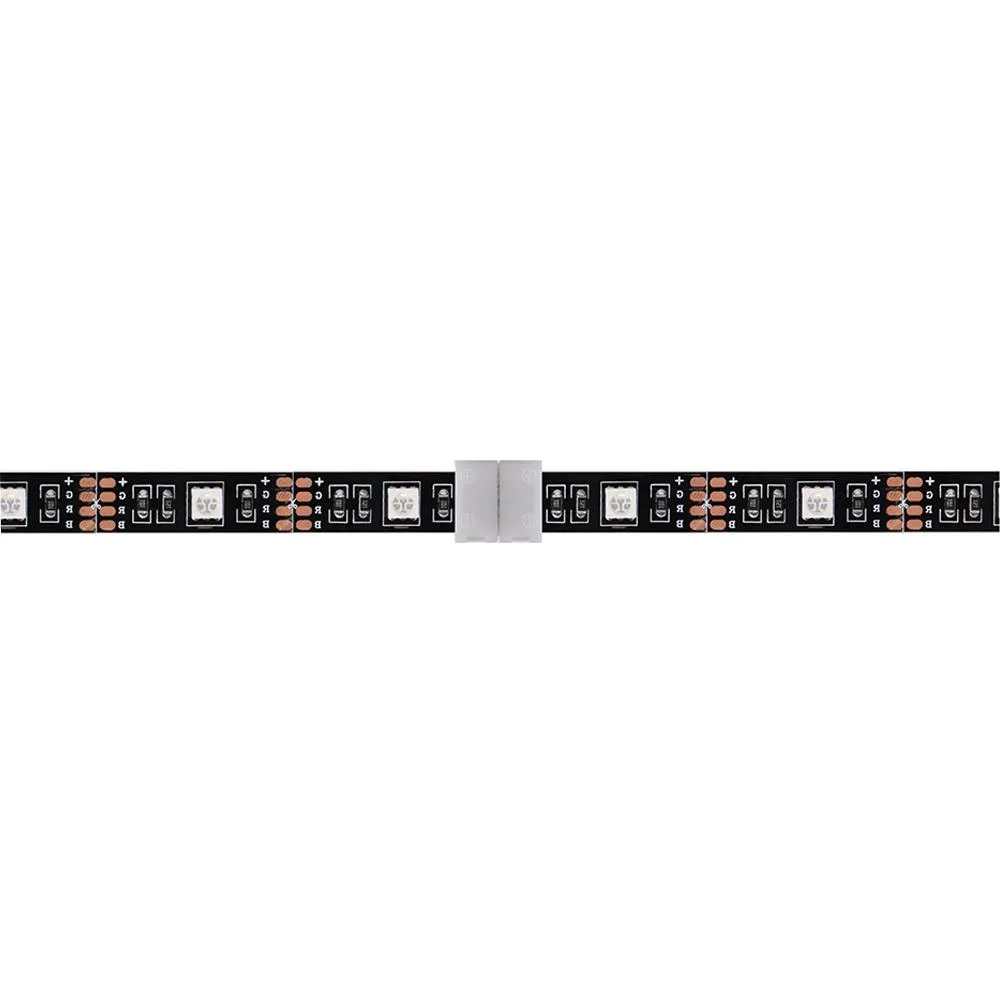

LED RGB Clip-On Direct Connector is easy to use with LED RGB Tape Light systems. Directly connect two pieces of 10mm RGB LED tape light together with the direct connector.

The RGB LED Clip-On Direct Joiner allows the LED RGB strip to slide into the connector and seat properly under the terminals. The solderless direct connector allows for easy configuration of your LED RGB Tape Lighting system.

It is the perfect fit for our RGB LED Strip SMD 5050 RGB LED Tape Lights. This connector is made from PBT heat resistant material, it protect the led strip from high temperature. Easy to use, tool-free installation. No Need Soldering. Only fit for SMD 5050 LED RGB Strip Lights.

Specifications

• Input Voltage: 12V or 24V DC

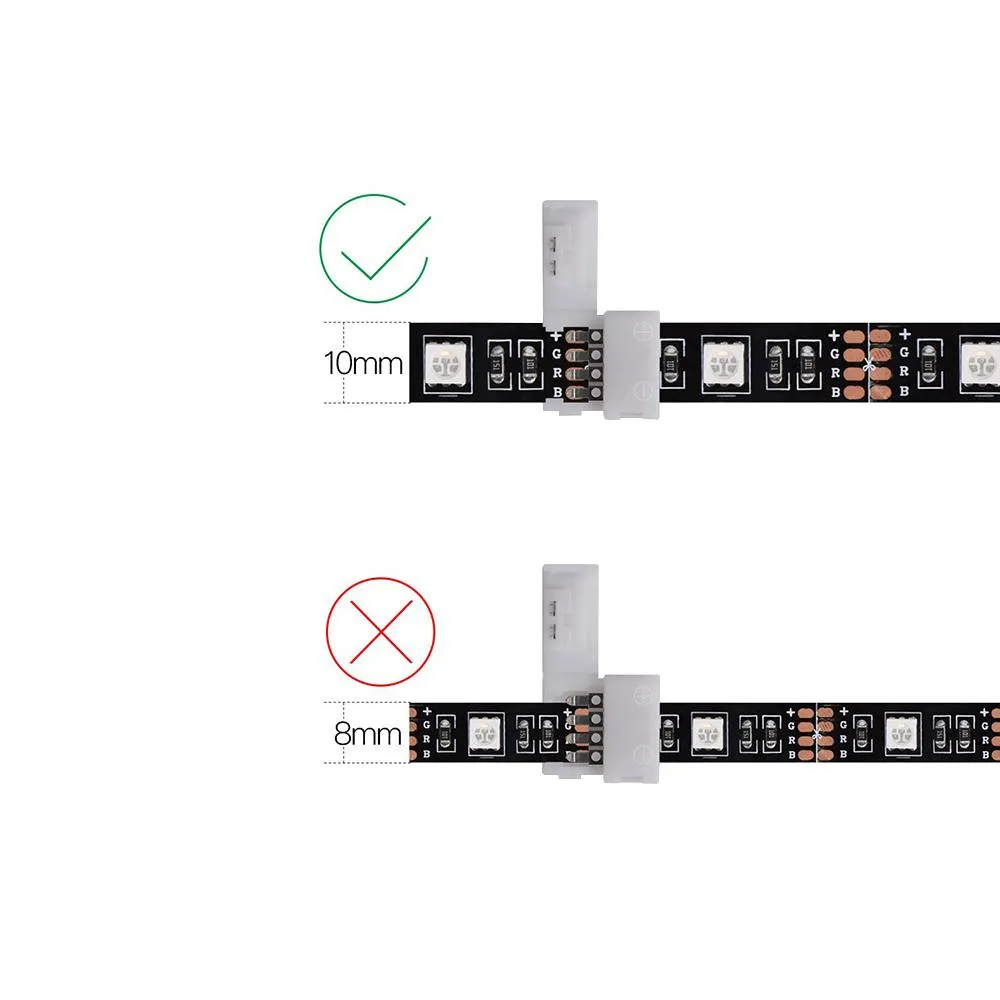

• Clip-On Connector Sizes: 10 mm wide
• Conductors: 4
• Environment: Dry Location
• Warranty: 1 year

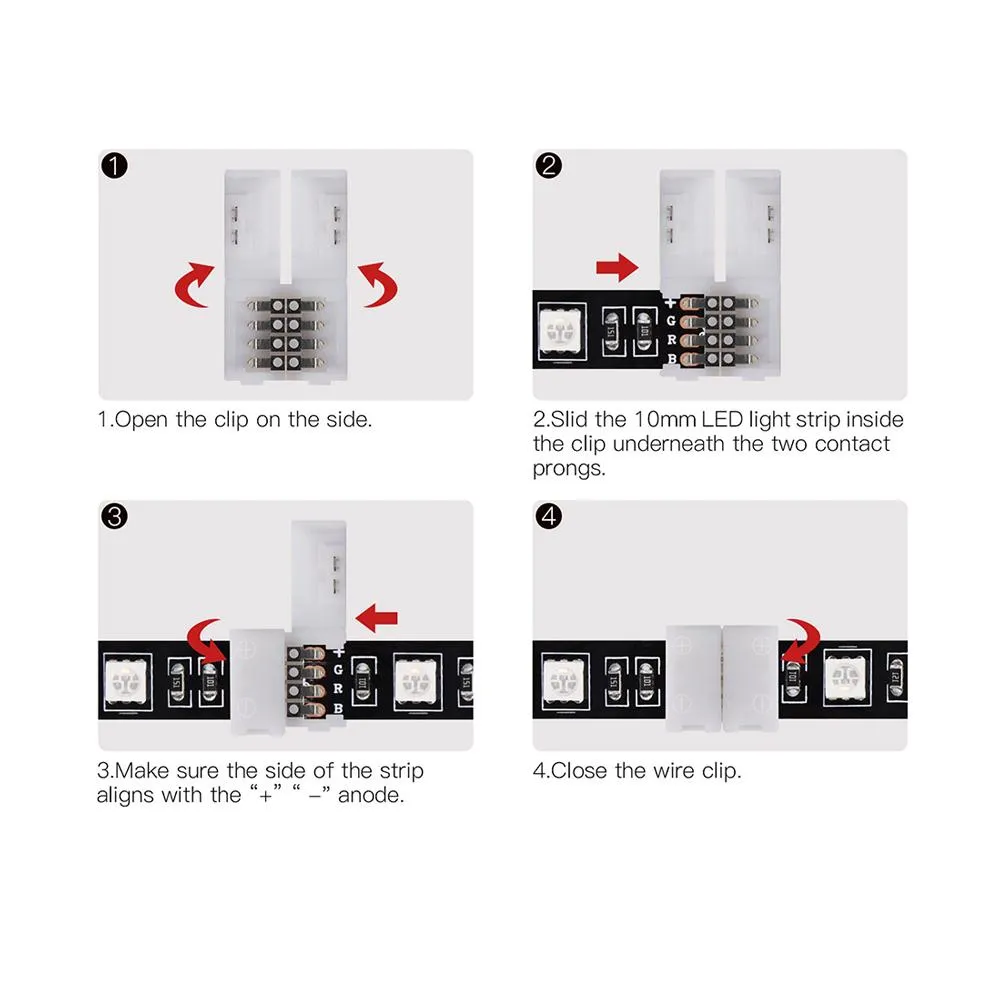

Installation

1. Open the clip on the side.
2. Slide the 10mm LED RGB tape light inside the clip underneath the contact prongs.

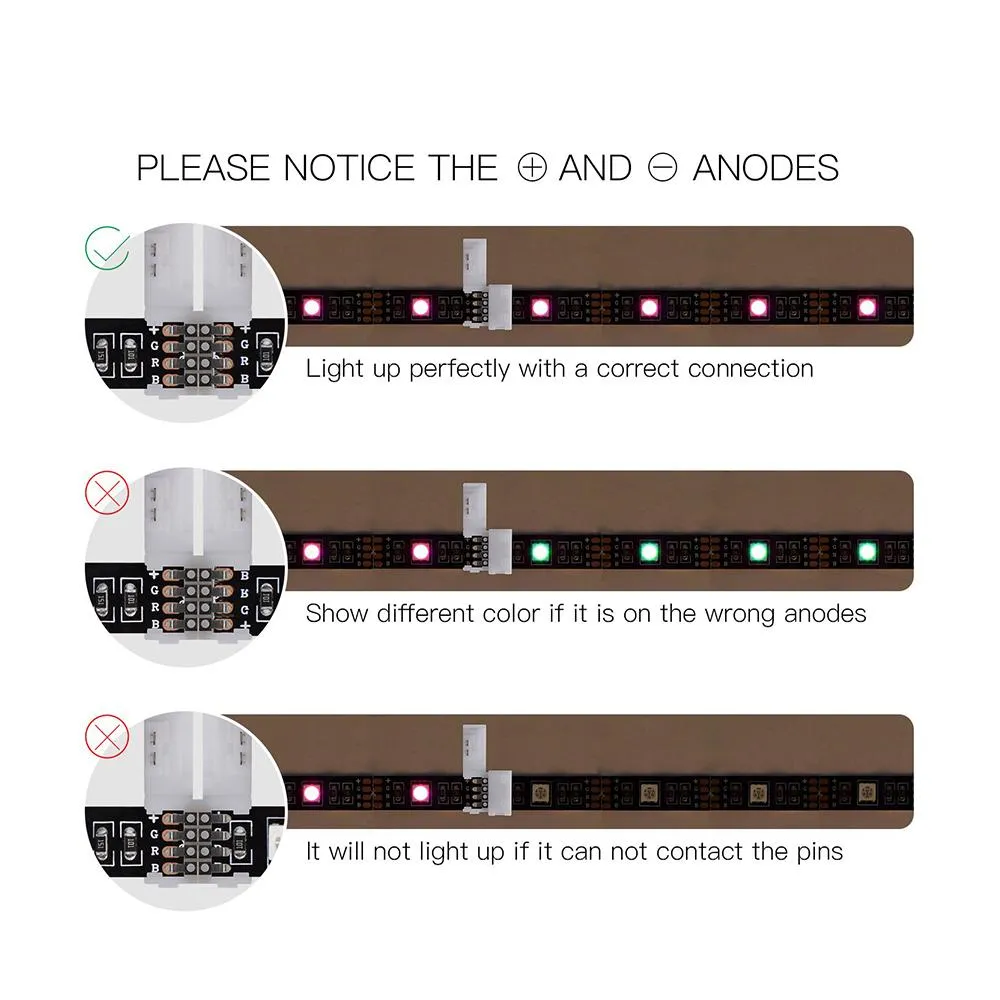

3. Make sure the side of the LED Tape light aligns with the " -" polarity.
4. Fold over the connector clip.
